Control System

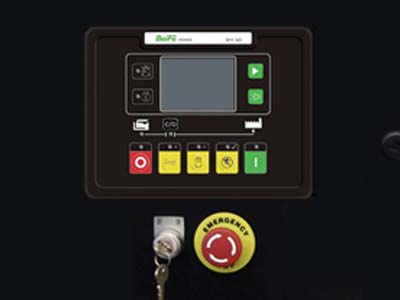

	Standard Control Panel BFK620 Features: Baifa Standard Control Panel uses micro processing technique integrating digital, intelligent and network techniques, which can carry out functions including: -Auto start/stop -Auto/manual switch -Data display:Voltage, current, frequency, load applied power measure,active power, average power, KWhr, Kvarhr,RPM,oil pressure Bar/PSI,Auxiliary analog output1，2，battery voltage, opporation time. -Alarming,Warning, fault diagnose and communication to PC with RS485,RS232,USB port -Optional CANbus communication port to read ECU engine data. - Working Environment -40 to 70’C The controller uses LCD display, optional Chinese and English display interface with easy and reliable operation.

	BFK-H3310 The new generation of single gen-set auto control module, the new design more focused on customers needs. It improves the quality aimed to satisfy different gen-set utility needs. BFK-H3310 includes all features of BFK620

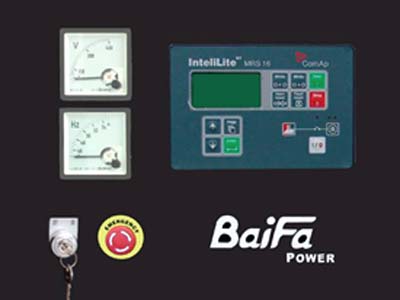

	MRS-10/16 Auto control system Features: MRS-10/16 controller comes with large LCD screen; full English& Chinese operation. The control panel has strong control function, easy to operate. The C-10/16 Auto control system can carry out functions including: -Auto start/stop; -Easy operation button, with LED lighting & LCD display -Data can be measured and modified directly on module/PC -Gen-set 3 phase protection -Generator set measurement (50/60Hz) in units: U1-U3,I1-I3,Hz,KVA, KW, KVAr,KWH. -Optional input and output port -Fault history

Remote feature: MRS-10 can receive remote output signal from ATS and realize auto start and stop of generators. MRS-16 can realize all functions of MRS10, add RS232 interface, which can communicate with PC to realize remote operation. AMF-25 Auto mains failure controller can realize all functions of MRS16, furthermore can detect ATS and control directly. For more information, please consult with our professionals at sales@chntec.com
