ATS-V series automatic loading transfer panel is the standard configure of emergent power system. The panel detects the voltage and frequency of civil electricity timely.
While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically


The key technique of ATS-V panel is how to achieve the detection of the civil electricity's state (the control gauge), how to control the switch from the generating electricity to civil electricity (the witch). BAIFA ATS-V panel has advantages as follows:

1.The switch of civil electricity & generating electricity: Adopts W & WN series switch of VITZRO-TECH, which is made in Korea. VIZRO-TECH owns advantage of advanced technology, steady capability, reasonable structure and exquisite appearance. Dev.Zone.
2.The control gauge adopts Intelligent HAT220 2-batteries with automatic switch as its main controller, this control panel provide friendly interface to the user, own functions of automatic switch and manual control, making it convenient for operating and setting of parameter.

The controller surveys the voltage and frequency of the 2-circuit, 3-phase power timely (alarm scope can be set), owns several kinds of prolonged function (prolonged time is adjustable); has function as signal output of diesel machine starting, can control the starting and prolonging of diesel machine timely, fault and return time of civil electricity; also it has option of "No preference", "Prime power preferred", "Standby power preferred" and so on.

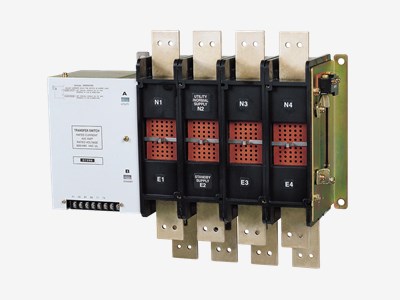

Baifa standard VOZRO ATS switch

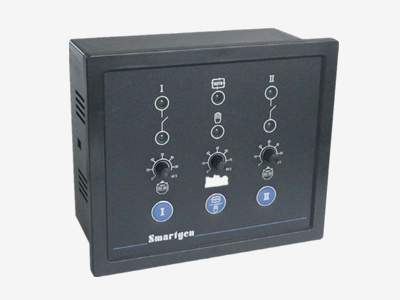

ATS standard controller
Dual power source automatic swich intelligent controller with core microprocessor, the module can be accurately detecting two three-phase voltage.
During loss of electricity, over voltage, under voltage, phase, the system can make accurate diagnose and make control to ATS switch.
The controller is capable of sending accurate signal to start generator when city power fails.
